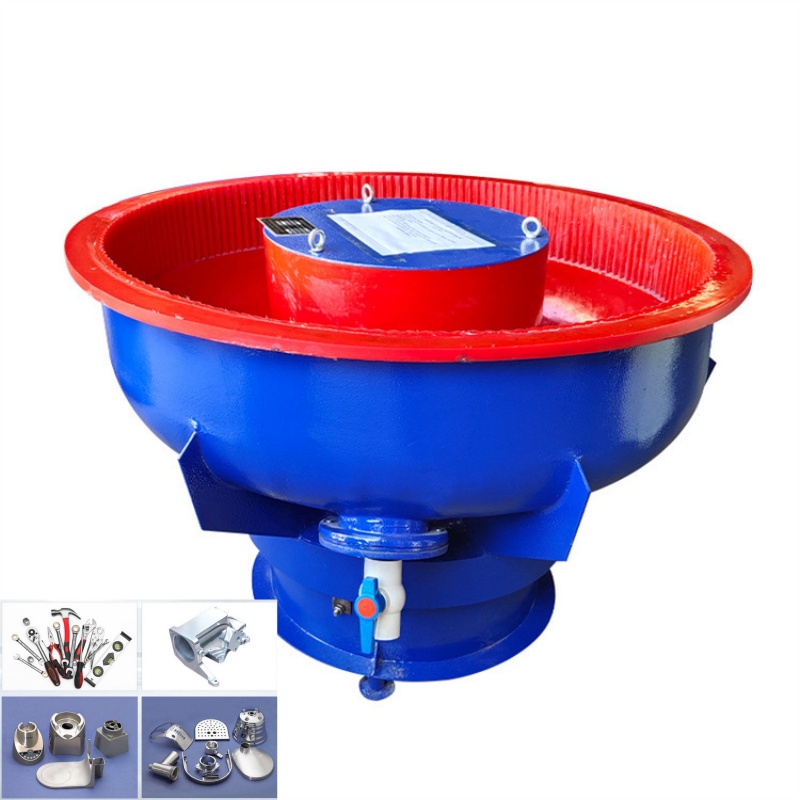

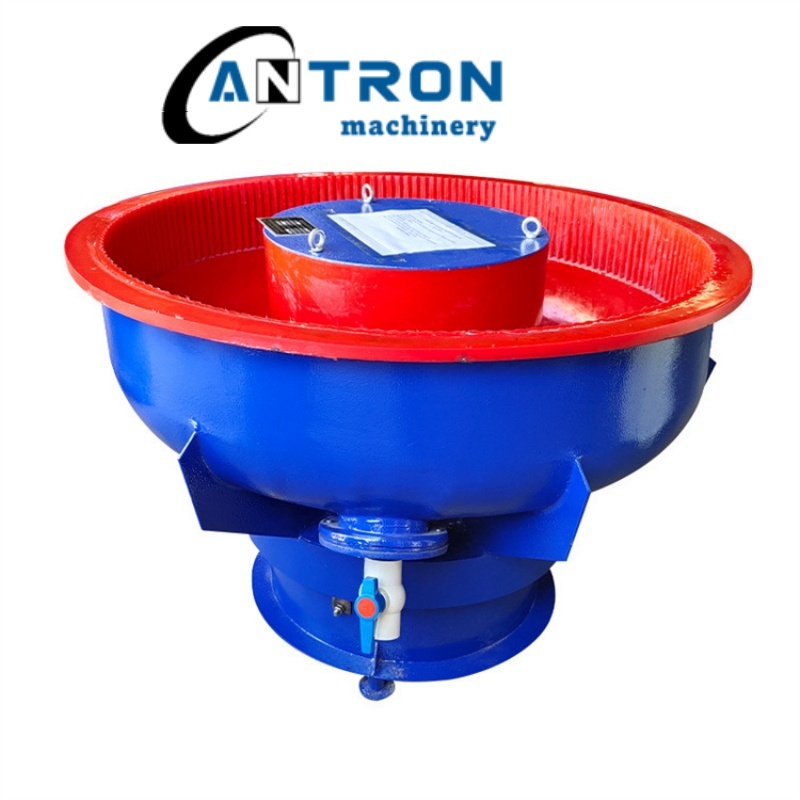

Vibratory Surface Grinding Machine for Metal Parts Deburring Small Parts Aluminium Iron Bowl Shape

Features of Vibratory Surface Grinding Machine for Metal Parts Deburring Small Parts Aluminium Iron Bowl Shape:

| **Core Component**            | **Technical Highlights**                                                                                         |

| ----------------------------- | ---------------------------------------------------------------------------------------------------------------- |

| **Straight-Wall Bowl**        | High-strength steel welded construction with **cast-in polyurethane lining** (not sprayed), 5× longer wear life. |

| **Patented Vibratory System** | Dynamic eccentric block balancing achieves 92% energy efficiency, noise ≤65dB.                                   |

| **Smart Control System**      | Real-time monitoring of current, temperature, and vibration intensity with automatic shutdown protection.        |

| **Modular Expansion**         | Supports automated loading, flipping, and media separation upgrades.                                             |

Advantages of Vibratory Surface Grinding Machine for Metal Parts Deburring Small Parts Aluminium Iron Bowl Shape:

• Replaces 3–5 traditional processes (manual grinding, chemical cleaning, sandblasting), cutting overall costs by 40%.
• Reduces cycle time by 30%, with batch processing completed in 5–8 minutes.

• Stepless adjustment of vibration frequency (0–50Hz) and amplitude (0–5mm) adapts to all scenarios from fine polishing to heavy deburring.
• Achieves surface roughness Ra ≤ 0.2μm, meeting aerospace (AMS 2488) and medical device (ISO 13485) standards.

• PLC + HMI touchscreen stores 100 process recipes, enabling one-click recall.
• Maintenance-free inverter motor + cast-in polyurethane lining ensures 10,000+ hours of zero-downtime operation.

Application of Vibratory Surface Grinding Machine for Metal Parts Deburring Small Parts Aluminium Iron Bowl Shape:

• Aluminum wheels: Deburring + mirror polishing in 8 minutes/batch, fatigue life improved by 15%.
• Transmission gears: Edge rounding reduces noise by 3–5dB.

• Titanium blades: Precision polishing to Ra ≤ 0.1μm, passing 1,000-hour salt spray test.
• Aluminum skins: Removes laser-cut burrs, meeting ASTM B209 standards.

• Stainless steel surgical tools: Passivation + polishing, biocompatible per ISO 10993-5.
• Orthopedic implants: Surface roughness Ra ≤ 0.4μm for enhanced osteoblast adhesion.

• Drills/wrenches: Rust removal + anti-corrosion treatment, passing 1,200-hour salt spray test.
• Precision molds: Removes EDM residues, extending tool life by 20%.
