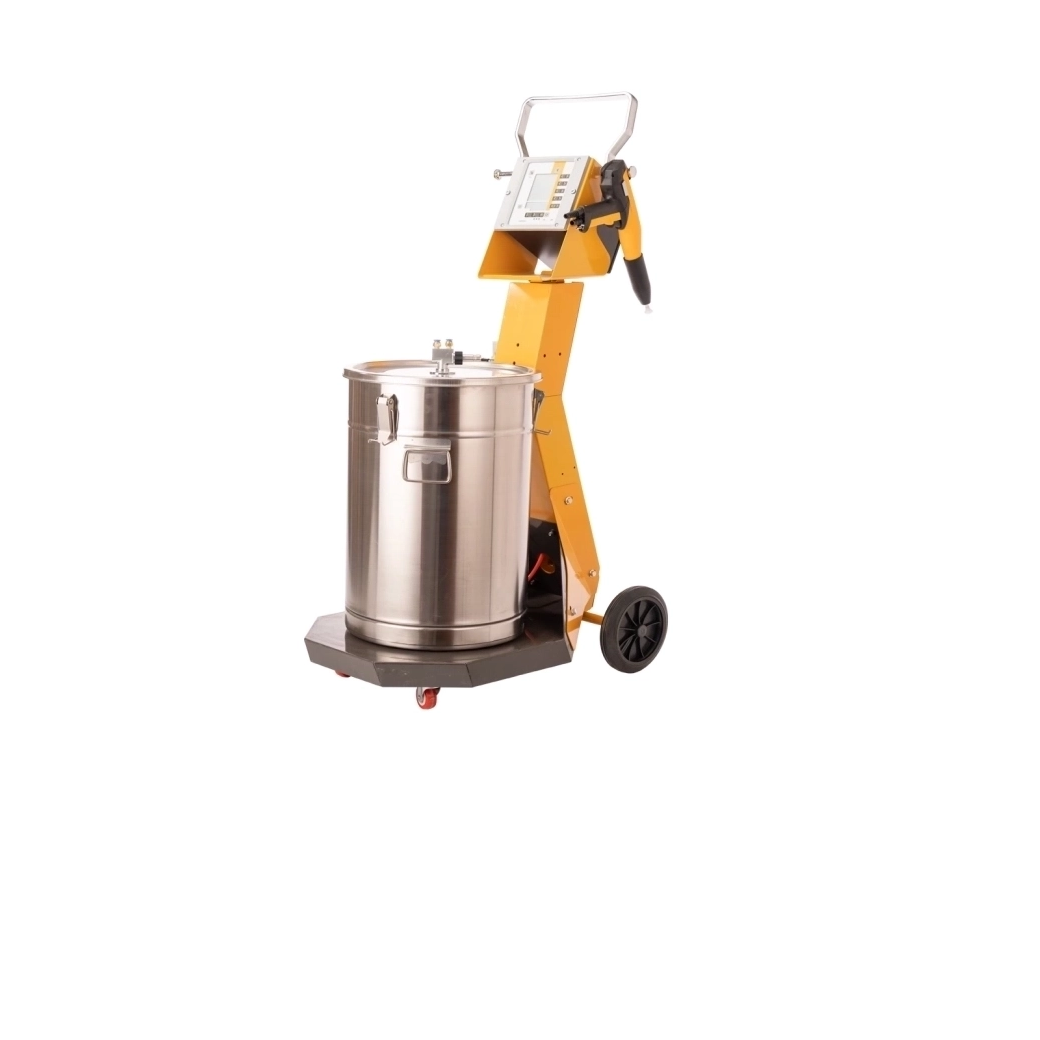

This product is suitable for a variety of thermosetting powders and use clean compressed air as a dispersing medium, which is not only environmentally friendly but also beneficial to the health of operators. The design of the equipment ensures a high utilization rate of raw materials, up to 98%, and the powder can be recycled and reused. The surface coating obtained through the electrostatic powder spraying process is strong and durable, meeting the high standards of industrial coating requirements.
Technical date:
Electrical parameters
Nominal input voltage | 100-240VAC |
Frequency | 50-60HZ |
Power supply fluctuation | ± 5% |
Overvoltage category | OVCII |
Connected load | 40VA |
Rated output voltage (output to spray gun) | 12V |
Rated output current (output to spray gun) | 1.2A |
Vibrator connections and output (on auxiliary output) | 100-240VA |
Aerodynamic data
Compressed air connection | 8 |
Maximum output pressure | 5.5bar/80psi |
Maximum water vapor content of compressed air | 1.3g/m3 |
Maximum oil vapor content of compressed air | 0.1mg/m |
General condition of the transmitter
Powder tube (inner diameter) | 11mm |
Powder tube type | POE with wire |
Input pressure (bar) | 5.5 |
Correction value CO | Powder output zeroing |
Air flow rate
Scope | Factory settings | |
Flow rate - vulcanizing air: — Type B equipment — Type F equipment (excluding air Booster air requirements) — Type S device (With optional vulcanized plate | 0-1.0Nm3/h 0-5.0Nm3/h 0-1.0Nm3/h | 0.1Nm3/h 1.0Nm3/h 0.1Nm3/h |
Electrode cleaning air flow rate | 0-5.0Nm3/h | 0.1Nm3/h |
Total air flow rate (at 5.5bar) — Delivery air flow rate —Supplementary air flow rate | 5Nm3/h 0-5.5Nm3/h 0-5.5Nm3/h | |
Maximum total air consumption during spraying operation is less than 5.5Nm3/h: — Total air volume = 5Nm3/h (delivery air + supplementary air) — Electrode cleaning air flow = 0.1Nm3/h (flat nozzle) | ||
Environmental conditions
Exploit | internal |
Height | does not exceed 2000m |
Temperature range | +5°C — +40°C (+41°F — +104°F) |
Maximum surface temperature | +80°C (+185°F) |
Maximum relative humidity | 80% down to 31°C, 40°C down to 50% relative humidity |
Environment | Not suitable for humid environments |
Expectes environmental pollution level | 2 |
Sound Pressure Level
Normal operation | It is not higher than 60dB (A) |
