Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing
Home » Machine » Mass Finishing Machine » Barrel Tumbling Machine » Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing

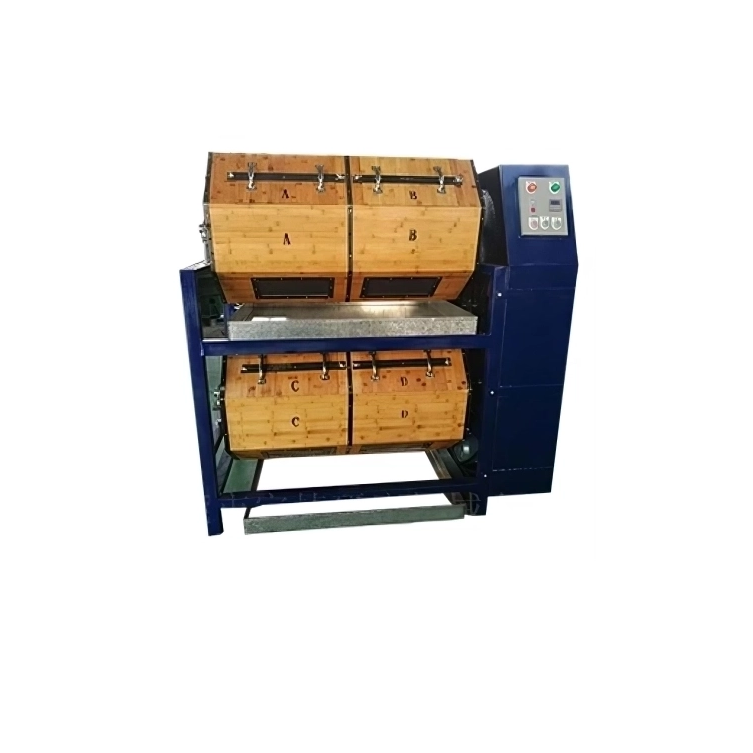

Wooden Barrel Tumbling Machine
Wooden Barrel Tumbling Machine Wooden Barrel Tumbling Machine
Wooden Barrel Tumbling Machine Wooden Barrel Tumbling Machine
Wooden Barrel Tumbling Machine Wooden Barrel Tumbling Machine
Glass Resin Plastic Wooden Barrel Tumbling Macine Glass Resin Plastic Wooden Barrel Tumbling Macine
Glass Resin Plastic Wooden Barrel Tumbling Macine Glass Resin Plastic Wooden Barrel Tumbling Macine

loading

Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
The WBM wooden rotary tumbling machine, commonly referred to as wooden barrel polishing machine in the industry, is a special mass finishing equipment designed for gentle dry polishing. Its core barrel is made of solid wood. The barrel rotates slowly and evenly to realize fine surface treatment of workpieces with mild grinding force. It can fully retain the original texture of workpieces without collision marks, scratches, edge chipping and other damages, making it especially suitable for fragile and scratch-prone sensitive workpieces such as wooden parts and glass pieces.
Availability:
Quantity:
Request An Instant Quote Add to Basket

Previous:
Next:
Product Description
Features
Advantages
Application


Description of  Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing:



Antron Machinery equipped with a fully automatic intelligent control system, the machine supports bidirectional rotation, timed processing and automatic fault alarm, with stepless adjustable rotating speed ranging from 0 to 40 RPM. A digital display screen monitors real-time data including processing duration, operating frequency, current and voltage. No full-time operator is required during operation, and the polishing uniformity of workpieces in the same batch remains highly consistent. Compatible with dry polishing processes, it can complete deburring, soft brightening and mirror polishing in one procedure when matched with natural abrasives such as wood grains, bamboo grains and walnut shells. It is widely used for mass production in woodworking, precision hardware, microelectronic components and other industries.

Technical data：

Model

Volume/L

Machine size/MM

Barrel size/MM

Power/KW

Rotary speed/RPM

Weight/KG

WBM300

300

1670x780x1280

1130x710

1.5

40

280

WBM600

600

1880x780x1680

1130x710

2.2

40

420





Features of  Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing:

  • Integrated solid wood barrelThe solid wood barrel provides superior buffering performance, eliminating collision damage caused by rigid metal barrels and compatible with all types of dry polishing abrasives.
  • Bidirectional variable frequency speed control systemRotating speed can be freely adjusted within 0~40 RPM, with alternate forward and reverse rotation to achieve uniform grinding without dead corners on workpiece edges and gaps.
  • Digital intelligent monitoring panelDisplays real-time processing time, operating frequency, current and voltage. Processing parameters can be stored fixedly to avoid repeated debugging when switching production orders.
  • Timed processing & fault alarm functionsCustomizable grinding duration with automatic shutdown reminder after finishing. The machine will alarm and stop automatically under abnormal operation to prevent expanded equipment faults and losses.
  • Standardized filling ratio designThe standard loading capacity accounts for 60% of the total barrel volume, matching the optimal proportion of workpieces and natural abrasives to deliver ideal tumbling and polishing effects.
  • Heavy-duty motor configuration for the full seriesCorresponding horsepower motors are equipped for small and large capacity models to guarantee stable, vibration-free operation and support non-stop 24-hour factory production.




Advantages of Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing:

  • Gentle processing without damaging fragile workpiecesThe solid wood barrel delivers outstanding cushioning performance. The mild friction force generated by low-speed tumbling leaves no impact marks on glass crafts, solid wood ornaments and thin precision small parts, perfectly protecting the complete appearance and natural texture of workpieces.
  • Eco-friendly dry processing with lower energy consumptionAdopting dry polishing without grinding liquid, the natural wooden barrel is pollution-free. It consumes less electricity compared with metal barrel grinding machines, effectively cutting power costs for long-term mass production.
  • Fully automatic intelligent operation to save laborFeatures bidirectional rotation, timed shutdown and automatic alert upon processing completion. The digital panel monitors equipment operating conditions in real time. A single operator can supervise multiple machines simultaneously, drastically reducing labor input.
  • High consistency of finished products in batch processingStable and uniform tumbling of the barrel enables all-round even friction between workpieces and abrasives. Mass-processed parts maintain unified surface gloss and roughness, eliminating rework and sorting procedures.
  • Durable structure with simple maintenance and low operation costThe machine features a compact transmission structure with low failure rates for driving components. Daily maintenance only involves regular cleaning of internal debris and lubrication of transmission bearings. The solid wood barrel resists corrosion and boasts an extended service life.
  • Full range of capacity models to meet different production demandsComplete specifications cover small 50L laboratory trial machines up to large 500L mass production units, catering to both small-batch sampling and large-scale assembly line manufacturing.


Appliaction of Wooden Barrel Tumbling Machine for Glass Resin And Plastic Processing:

  • Wooden products: solid wood crafts, furniture fittings, musical instrument wooden components, wooden beads and ornaments

  • Fragile parts: various small glass pieces and glass accessories

  • Precision hardware: miniature bearings, sliding rails and micro fasteners

  • Electronic accessories: precision metal terminals and tiny conductive components


Product Description
Features
Advantages
Application

Related Products

Metal Steel Rock Vibratory Tumbling Machine Vibratory Polisher
Automatic Deburring Vibratory Machine Vibratory Tumbler Polishing Machine With Separator Vibration Polishing Machine
Best Selling High Efficiency Barrel Tumbling Machine
Industrial Barrel Tumbling Machine for Efficient Surface Finishing
Amber Steel Ceramic Finishing Vibratory Separator
Amber Steel Ceramic Batch Vibratory Separator Finishing Vibratory Separator
SCT ACC 10mm Ceramic Grinding Media
SCT ACC 10mm Ceramic Grinding Media

Factory

Service

Product Quality Inspection

We implement strict quality control standards to ensure that every factory equipment has undergone precise inspection and repeated testing.
From raw material selection to final assembly, every step has a detailed quality audit process to ensure product durability and reliability.

Product R&D Team

Our product R&D team is composed of senior experts in the industry, who constantly explore and apply the latest technologies to improve product performance and user experience.
The team is committed to innovation and leads the industry's technology development trend through continuous technology research and development.

After-sales Service

We provide comprehensive after-sales services, including but not limited to quick-response technical support, regular maintenance inspections, operating training and spare parts supply.
No matter where you are, our global service network can provide you with timely and professional support.

Technical Support Services

Our technical support team is always on call to answer customers' technical questions via phone, email, or remote assistance.
We also provide regular product upgrades and performance optimization services to ensure that our customers' equipment is always in top condition.

FAQ

  • Q There are still scratches or unevenness on the surface of the product after grinding and polishing.

    A We recommend checking whether the abrasive grain size of the grinding and polishing machine is suitable for the hardness of your material, and whether the ratio of the grinding fluid is correct. At the same time, ensure that the pressure and time during the grinding and polishing process meet the process requirements. If the problem persists, we provide professional technical consulting services and can dispatch technicians to diagnose and provide solutions on site.

  • Q The equipment operation is complex and employee training is difficult.

    A Our design team is committed to creating user-friendly devices. For operational complexity, we provide detailed operation manuals and video tutorials. In addition, we can also arrange professionals to go to your factory for on-site training to ensure that each operator is proficient in using the equipment.

  • Q Grinding and polishing machines are expensive to maintain.

    A We understand the importance of maintenance costs to business operations. We do this by designing equipment that is easy to maintain and offer preventative maintenance programs to help reduce long-term operating costs. At the same time, our after-sales service team will provide regular inspections and rapid repair services to reduce losses caused by equipment failure.

  • Q The capacity of the grinding and polishing machine cannot meet the production demand.

    A If you find that the capacity of your existing equipment cannot keep up with production demand, we can increase capacity by adding workstations, upgrading equipment configurations, or providing automation solutions. We are willing to work with you to assess bottlenecks in your current production line and provide customized expansion solutions.

  • Q Grinding and polishing fluid pollutes the environment.

    A Environmental protection is one of our top priorities. We offer environmentally friendly grinding and polishing fluids and ensure they comply with the latest environmental regulations. In addition, our engineers can assist you in designing wastewater treatment and recycling systems to reduce environmental impact.
