Centrifugal Barrel Finishing (CBF) is a highly efficient mass finishing process that utilizes centrifugal forces to improve the surface of metal and plastic parts. By using the right finishing media, CBF can achieve deburring, polishing, edge radiusing, and cleaning in a fraction of the time compared to traditional methods. The media used in this process is crucial to its success, as it directly impacts the quality of the finish, the efficiency of the process, and the lifespan of the machinery. In this article, we will dive deep into the types of media used in CBF, the factors influencing their selection, and best practices for maintaining optimal finishing results.

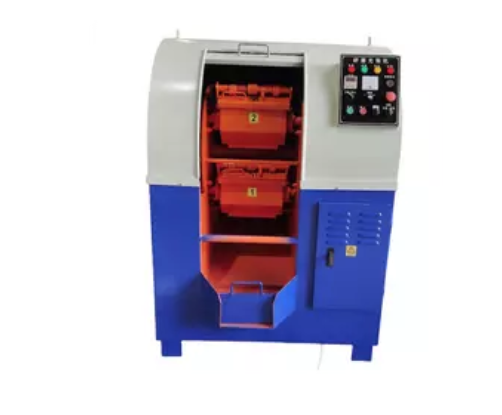

Centrifugal Barrel Finishing is a high-energy finishing process that utilizes centrifugal force to achieve rapid and uniform surface improvements on parts. In a typical CBF machine, parts and media are placed in a rotating barrel. The barrel's rotation generates centrifugal forces, causing the media to press against the workpieces, which removes material and improves surface quality. This process can be used to deburr, polish, clean, and radius the edges of metal and plastic parts. The advantage of CBF over other finishing processes is its ability to handle complex geometries and deliver consistent finishes quickly and efficiently.
In the CBF process, media serves as the primary abrasive agent that comes into contact with the parts. The media’s role is to perform tasks such as:
· Deburring: Removing sharp edges or burrs left on parts after machining.
· Polishing: Smoothing surfaces and achieving a high-gloss finish.
· Edge Radiusing: Rounding off sharp edges to reduce stress concentrations and improve part performance.
· Cleaning: Removing residues, contaminants, and oxidation from the surfaces of parts.
The type of media chosen for a particular task plays a crucial role in determining the final quality of the part’s surface finish. The media's composition, hardness, size, and shape must be selected based on the workpiece material and the desired outcome.
The media used in CBF can be classified based on its material composition, hardness, shape, and size. Each type of media is designed to optimize specific finishing actions, depending on the part's material and the desired surface finish.
Ceramic media is one of the most commonly used media types in Centrifugal Barrel Finishing. It is made from a variety of ceramics and can be shaped into different forms to serve various purposes in the finishing process. Ceramic media is known for its high durability and abrasiveness, making it an excellent choice for heavy-duty applications, especially in industries where high performance is required.
· Characteristics: Ceramic media is hard, durable, and available in various shapes such as cylinders, stars, pyramids, and cones. It is typically used for grinding, deburring, and polishing metal parts.
· Applications: Ceramic media is suitable for deburring and finishing metals such as stainless steel, titanium, and aluminum. It is commonly used in industries like aerospace, automotive, and heavy machinery, where parts require aggressive abrasion to remove material or rough surfaces.
· Advantages: Ceramic media is highly durable, offering long-lasting performance, and can handle high-impact processes with minimal wear. It is effective in removing tough burrs and grinding hard metals, making it ideal for industries that deal with hard-to-process materials.
Plastic media is softer than ceramic media, making it ideal for use with softer metals and materials. It is often used in applications where a gentler abrasive action is needed, such as polishing or pre-polishing. Plastic media is less aggressive than ceramic media, which helps reduce the risk of damage to delicate or thin-walled parts.
· Characteristics: Plastic media is softer and more flexible than ceramic media. It is often made from polymer materials such as nylon, polypropylene, or polyethylene. Plastic media is available in a variety of shapes, including cones, cylinders, and spheres, and can be selected based on the part's surface finish requirements.
· Applications: Plastic media is best suited for polishing and deburring softer metals like aluminum, brass, and copper. It is also used for pre-polishing in processes that require a finer finish. Plastic media can also be used for delicate parts in industries like electronics and medical devices.
· Advantages: Plastic media is gentle, reducing the risk of scratching or damaging the parts. It is also less aggressive, making it ideal for parts with soft or thin materials. Plastic media has a longer lifespan in less aggressive processes, making it more cost-effective in certain applications.
Porcelain media is a non-abrasive type of ceramic media that is primarily used for polishing and burnishing. Unlike more abrasive ceramic media, porcelain media is specifically designed to achieve smooth, glossy finishes without excessive cutting or grinding.
· Characteristics: Porcelain media is smoother than traditional ceramic media, making it suitable for parts that require a high-quality finish. It is often used for achieving high-gloss, polished surfaces.
· Applications: Porcelain media is often used for polishing metals like brass and copper, as well as for burnishing precious metals and plastic parts. It is also used in the final stages of finishing when a fine, reflective finish is required.
· Advantages: Porcelain media provides a high-quality, reflective finish without damaging delicate parts. It is ideal for industries that require a high level of surface refinement, such as jewelry manufacturing and medical device production.
Steel media is ideal for more aggressive finishing tasks, such as heavy deburring and surface cleaning. It is made from high-carbon steel and is often used in industries where harder materials need to be processed or where high-impact abrasive actions are required.
· Characteristics: Steel media is harder and more durable than ceramic and plastic media. It is available in various shapes, including balls, pins, and rods, and is designed for high-impact processes.
· Applications: Steel media is used in the automotive, aerospace, and heavy manufacturing industries for deburring and surface preparation of steel, aluminum, and other ferrous metals. It is particularly useful in aggressive deburring applications where large burrs or sharp edges need to be removed quickly.
· Advantages: Steel media is highly durable and resistant to wear, making it suitable for heavy-duty applications. It is ideal for abrasive tasks that require high-impact action, such as cleaning parts or removing heavy burrs.
Organic media is made from natural materials such as walnut shells, corn cob, and other biodegradable substances. This type of media is softer and provides a non-abrasive finish, making it ideal for delicate polishing tasks. Organic media is typically used for the final stages of finishing when a gentle touch is required.
· Characteristics: Organic media is less abrasive and gentler on parts compared to ceramic or steel media. It is typically used for polishing and burnishing parts, giving them a fine satin or matte finish.
· Applications: Organic media is used for polishing precious metals, acrylics, and delicate components in industries like jewelry manufacturing and electronics. It is also used in the final polishing of plastic parts and medical devices.
· Advantages: Organic media provides a gentle, non-abrasive finish, making it ideal for sensitive parts. It is environmentally friendly and biodegradable, reducing the environmental impact of the finishing process.
Selecting the right media for a particular CBF application requires considering several key factors. These factors determine the performance, efficiency, and overall success of the finishing process.
The material of the workpiece is one of the most important factors in selecting the appropriate media. Harder materials such as stainless steel, titanium, and high-strength alloys require harder and more durable media, such as ceramic or steel, to achieve the desired finish. Softer materials, such as aluminum or plastic, benefit from gentler media, like plastic or organic media.
The desired surface finish dictates the type of media chosen. For example, if a high-gloss finish is required, porcelain or organic media may be ideal. If aggressive deburring is needed, steel or ceramic media would be more appropriate. The finish type can range from a coarse deburr to a fine, high-gloss polish.
Parts with complex geometries or intricate features may require specific media shapes to ensure thorough processing. For instance, small, detailed parts may benefit from spherical media, while parts with edges or corners may require more angular media, such as pyramids or stars.
The time available for finishing can influence the media selection. If a quick turn-around is needed, harder media that removes material more quickly may be preferred. Softer media may take longer to achieve the desired results but could be better for fine finishes or delicate parts.
Media costs can vary significantly depending on the material, size, and durability. Ceramic media, while highly effective, is generally more expensive than plastic or organic media. Budget constraints may play a role in selecting media, especially for less demanding applications.
The wear of media is an important consideration in CBF. Over time, media can degrade due to the repetitive impact and friction it undergoes during the finishing process. Proper media maintenance ensures that the finishing process remains consistent and cost-effective.
Regularly checking the wear of the media helps ensure that the finishing process maintains consistent performance. As media wears down, it becomes less effective in performing its abrasive action. Keeping track of the media's condition and replacing it when necessary prevents subpar results.
Over time, media can accumulate contaminants from the parts being finished, which can affect its performance. Regular cleaning and sorting of media help maintain its effectiveness and prevent unwanted residue buildup. Sorting also ensures that only media of the same type and size is used together, which helps maintain consistency in the finishing process.
Some types of media, especially plastic and organic, may need to be replenished periodically. This ensures that enough media is available to maintain the optimal media-to-part ratio, which is crucial for consistent and effective finishing.
To optimize the performance of media in CBF, it is essential to follow certain best practices.
Maintaining an appropriate media-to-part ratio is critical for optimal performance. Typically, a 3:1 ratio of media to parts is recommended to ensure that there is enough media to apply consistent pressure on the parts.
Proper barrel loading is crucial for effective media performance. A well-balanced barrel, typically filled to between 50% and 80% capacity, ensures that both the media and parts have sufficient space to interact and move effectively.
Regular inspection of media is necessary to monitor its condition. Worn-out or contaminated media should be replaced promptly to prevent damage to parts and maintain finishing quality.
In Centrifugal Barrel Finishing, the choice of media plays a fundamental role in achieving the desired surface finish. Whether using ceramic, plastic, porcelain, steel, or organic media, each type has its own specific use and benefits. Selecting the correct media based on the material, desired finish, part geometry, and cost constraints ensures that the CBF process is both efficient and effective.
For manufacturers and companies like Huzhou Antron Machinery Co., Ltd., which specialize in high-performance finishing equipment, understanding the nuances of media selection is key to providing top-tier services to clients. By optimizing media choices and adhering to best practices, companies can significantly enhance the quality and efficiency of their finishing processes.
Centrifugal Barrel Finishing is a high-energy mass finishing process that uses centrifugal forces to achieve rapid and uniform surface improvements on parts by interacting with abrasive media.
The choice of media affects the abrasiveness, surface finish quality, and overall efficiency of the finishing process, making it crucial for achieving desired results.
To maintain media, inspect it regularly for wear, clean it to remove contaminants, and replenish or replace it as necessary to ensure consistent results.
No, different materials require specific types of media. Harder materials like stainless steel require ceramic or steel media, while softer materials like aluminum may be best finished with plastic or organic media.
A 3:1 ratio of media to parts is typically recommended for optimal performance, but this may vary depending on the specifics of the application.
