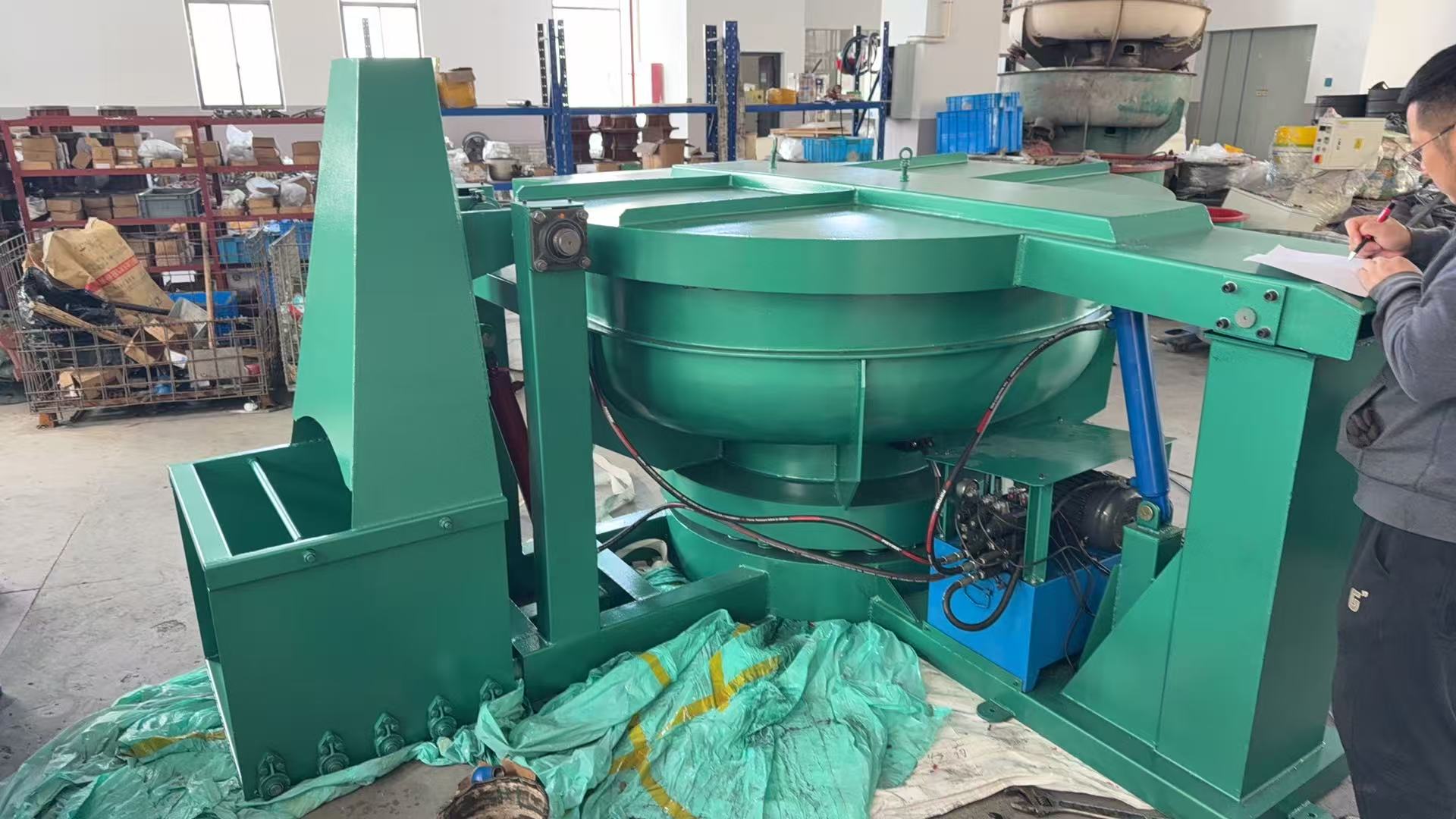

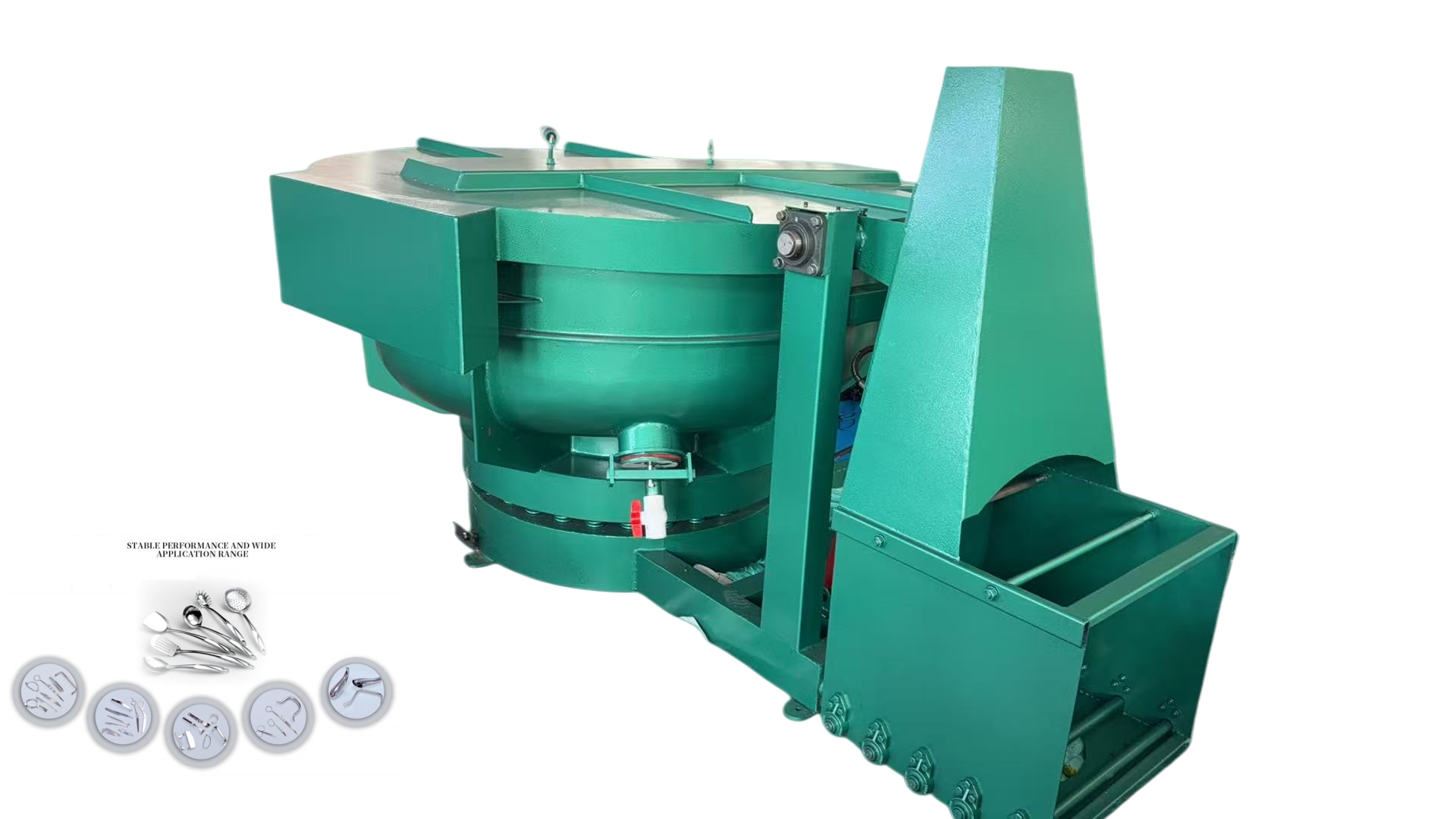

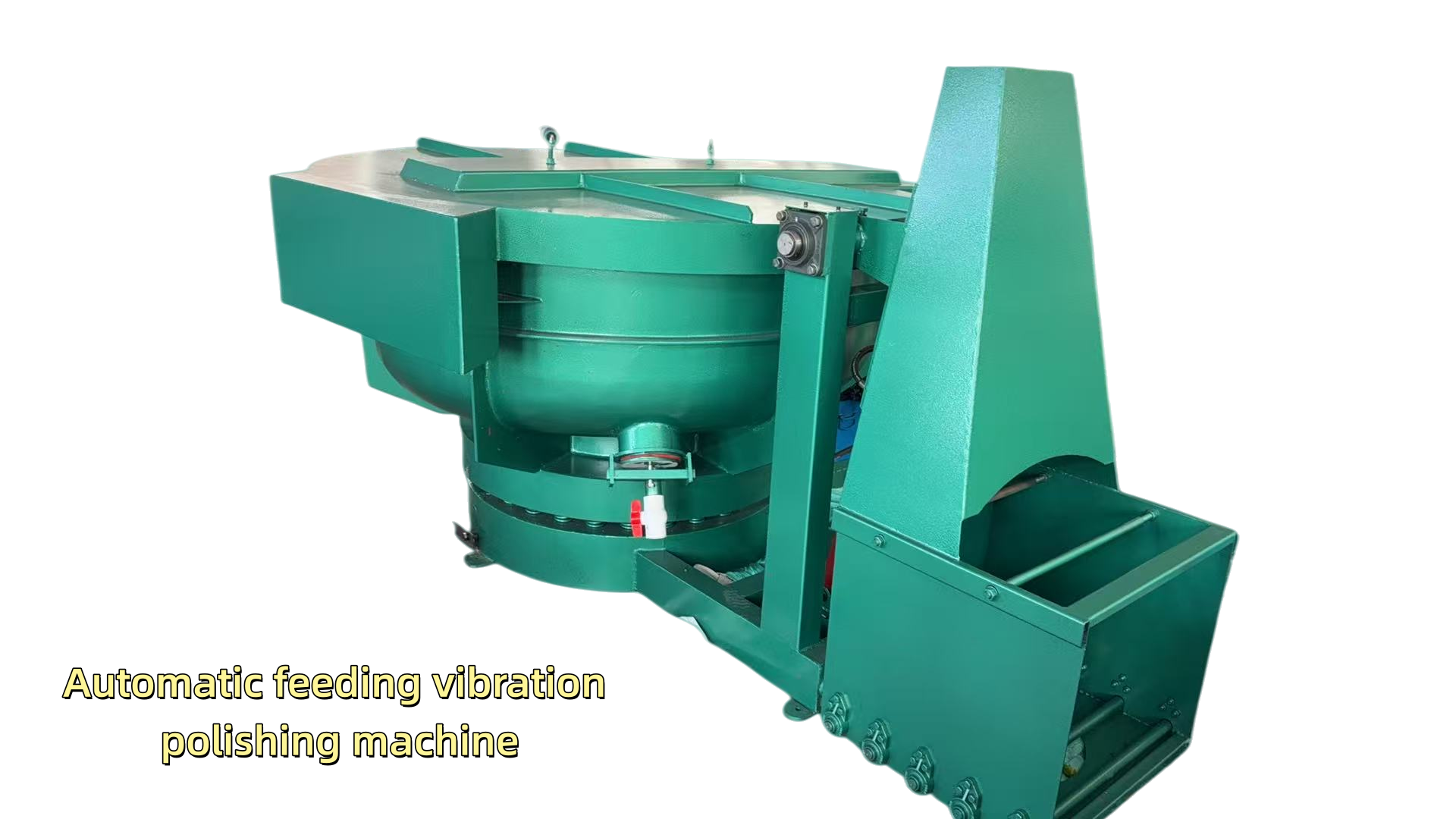

Auto-Feed Vibratory Polishing Machine for Hardware Deburring & Edge Rounding

Features of Auto-Feed Vibratory Polishing Machine for Hardware Deburring & Edge Rounding:

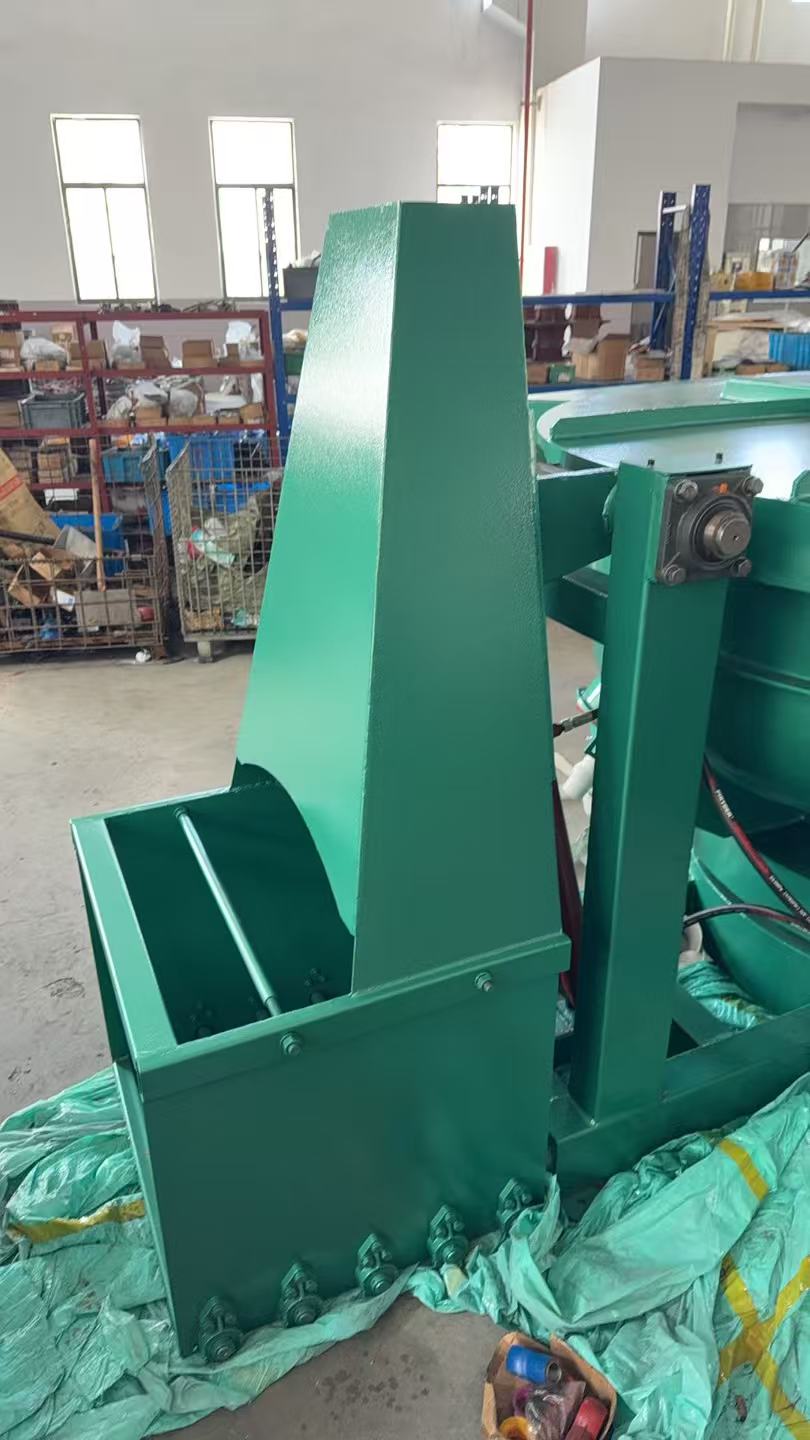

1. Hopper weighs the load in seconds to prevent overload;
2. Servo gate opens to the preset cycle, releasing batches into the vibratory bowl;
3. Tri-dimensional eccentric drive starts immediately, rounding edges and cutting Ra;
4. When finishing time is reached, the bowl hydraulically tilts 120°, unloading parts and media onto a separation screen for instant sorting.
   Full cycle ≤ 6 min, no shovels, no lifting, no guesswork.

Advantages of Auto-Feed Vibratory Polishing Machine for Hardware Deburring & Edge Rounding:

• Labor-saving: Conventional model needs 2 loaders + 1 watcher; ABS(B)-Pro needs only 1 roamer for 8 units—save USD 40,000+ per year.
• Uptime: Weight + cycle dual-loop eliminates jamming and idle running, keeping OEE ≥ 95%.
• Precision: 0.1-s gate response, batch-weight deviation ±50 g, part overlap < 0.15%.
• Durability: 4 mm PU liner inside hopper, 30,000 h life, 4× longer than mild-steel bins.
• Fast changeover: 64 recipes stored; call up gate speed, vibratory time and tilt angle in one click, product change finished in 10 min.

Application of Auto-Feed Vibratory Polishing Machine for Hardware Deburring & Edge Rounding:

• Zinc-alloy accessories: buttons, zipper pulls, badges—100 kg/batch, Ra 1.6 µm → 0.4 µm, brightness up 2 levels.
• Brass valves: 1½" bodies, 18 s/pc, pass 10 MPa seal test without leakage.
• Al-Mg phone frames: 360 pcs/batch, CNC marks removed, anodized layer even, zero “flow lines”.
• Stainless screws: M2–M8 mixed, burr on thread crest <0.05 mm, 100% gauge pass.
• Injection-moulded plastics: ABS/PC parts, parting line erased, no “stress whitening”, paint adhesion +30%.
