Mass finishing methods are integral to many industries, ensuring parts meet the necessary surface quality for functionality, durability, and appearance. For manufacturing companies that deal with high volumes of parts or require high-precision finishing, methods like Centrifugal Barrel Finishing (CBF) and Vibratory Finishing are frequently employed.
Both techniques involve using abrasive media to treat parts in bulk, removing imperfections such as burrs, sharp edges, and rough surfaces. However, the operational dynamics of CBF and vibratory finishing are vastly different. CBF uses centrifugal force to accelerate the finishing process, whereas vibratory finishing relies on oscillation and vibration to produce a polished surface.
This guide will delve into both finishing methods, detailing their unique features, exploring their pros and cons, and offering insight into which applications benefit most from each technique.

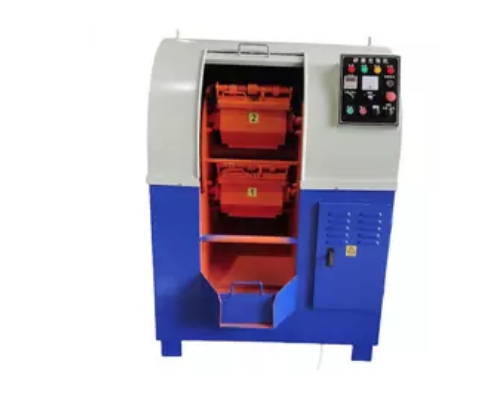

Centrifugal Barrel Finishing machines operate by creating a high-energy environment using centrifugal force. Typically, four barrels are mounted on the outer edges of a rotating turret. As the turret spins, the barrels rotate in opposite directions, causing the parts and abrasive media inside to be propelled with great force. This interaction accelerates the removal of burrs and surface imperfections, allowing for more efficient polishing and deburring.
The process in centrifugal barrel finishing is highly aggressive, and it is commonly used for deburring and polishing metals, plastics, and ceramic components. The centrifugal action creates an environment where the parts are subjected to intense pressure, and the abrasive media can remove material rapidly from the surfaces.
Unlike traditional tumbling methods, centrifugal barrel finishing machines achieve much faster results due to the high-energy environment created by the centrifugal force. This makes it a preferred method for mass production environments where high throughput is needed.
High Efficiency and Speed: CBF is one of the fastest mass finishing methods, capable of processing parts 30 to 40 times faster than conventional rotary barrel systems. This makes it ideal for high-volume production where quick turnaround times are crucial.
Uniform Surface Finish: CBF produces an isotropic surface finish, meaning the treatment is consistent across all surfaces of the part. This uniformity ensures that even complex or irregularly shaped parts receive the same level of surface treatment. The ability to achieve a fine finish in a shorter time than traditional methods helps manufacturers meet the increasing demand for high-quality parts.
Reduced Media Wear: The centrifugal action reduces wear on abrasive media. Because the parts and media are subjected to intense pressure in a confined space, the media can be reused for longer periods before needing replacement. This lowers the cost of consumables and results in more cost-effective operations in the long run.
Precision for Delicate Parts: CBF is well-suited for delicate parts or fine components, such as turbine blades or precision fasteners, where maintaining the integrity of the part while achieving a uniform finish is essential. The system can provide a high degree of control over the force applied to each part, preventing damage to fragile components.
Limited Part Size: The size of parts that can be processed in CBF is limited by the size of the barrels. Larger parts may not fit within the system, making it unsuitable for applications involving oversized components. This limitation restricts its use in industries that often work with larger parts or complex geometries.
High Initial Cost: The advanced technology behind CBF systems, such as their precision engineering and automation capabilities, results in a higher initial purchase cost compared to other mass finishing systems. The upfront investment can be prohibitive for smaller companies or operations that do not require the high throughput CBF provides.
Manual Loading and Unloading: While the finishing process itself is automated, the loading and unloading of parts often require manual intervention. This can add labor costs and reduce the overall efficiency of the process in some settings. Manual handling can also lead to inconsistencies in part placement, which may affect the finish quality.
Vibratory Finishing uses a vibrational motion to agitate parts and abrasive media within a container or bowl. The machine vibrates at a specific frequency, causing the parts and media to move in a circular or spiral motion. This motion allows the abrasive media to remove burrs and imperfections from the surface of the parts, gradually leaving them with a smooth, polished finish.
The vibratory action is more gentle compared to CBF, making it suitable for parts that are more fragile or have complex geometries. The process can be enhanced using wet or dry processes, depending on the material and desired finish. Wet vibratory finishing uses a slurry or water-based solution to aid the polishing process, while dry vibratory finishing relies on oils and lubricants to achieve the desired surface finish.
Vibratory finishing is versatile and can be used for a variety of applications, from deburring and polishing to radiusing. The ability to fine-tune the vibratory motion makes this process adaptable for delicate or complex parts that require a gentle touch.
Versatility: Vibratory finishing is suitable for a wide range of part sizes, from small components like jewelry or medical implants to larger automotive or aerospace parts. The ability to handle both delicate and robust materials makes it a highly adaptable finishing method. This versatility allows manufacturers to use the same system for different materials and parts with various shapes and sizes.
Automation Compatibility: Vibratory finishing systems can be easily integrated into automated production lines, significantly reducing labor costs and improving throughput. Automation allows for more consistent results and better control over the finishing process. The flexibility to adjust the speed and intensity of the vibration also allows for precise control over the finish quality.
Consistent Surface Finishes: The consistent vibratory motion ensures that parts are uniformly treated, even those with intricate geometries. This is especially important in industries like medical devices, where the precision of the finish is crucial. Parts with intricate internal cavities or complex shapes benefit from the even polishing that vibratory finishing offers.
Lower Maintenance: Vibratory finishing machines generally have fewer moving parts than CBF systems, which means they require less maintenance and are more reliable over time. The simpler design leads to lower repair costs and less downtime, allowing for continuous operations.
Longer Processing Times: Compared to CBF, vibratory finishing typically takes longer to achieve the same level of surface finish. This is because the vibratory motion is less intense than the centrifugal force used in CBF systems, leading to slower material removal. While this may not be an issue for smaller batches or parts requiring fine polishing, it can be a disadvantage in high-volume operations that need fast processing.
Higher Media Wear: The continuous agitation of parts and media in vibratory finishing can cause the abrasive media to degrade more quickly. This increases the cost of consumables, as media needs to be replaced more frequently. Media wear can also affect the consistency of the finish over time, requiring regular checks and adjustments.
Requires Regular Maintenance: While the basic operation of vibratory machines is relatively straightforward, maintaining the vibratory components—such as the motor and vibratory bowl—requires regular inspection and maintenance to ensure that the system operates at peak efficiency. This includes monitoring for signs of wear, vibration irregularities, and media consistency.
CBF is renowned for its speed, processing parts much faster than vibratory finishing. The centrifugal force accelerates the finishing process, allowing CBF to handle larger batches of parts in a shorter amount of time. This makes CBF ideal for high-volume operations where speed is of the essence.
In contrast, vibratory finishing tends to be slower, as it involves more gradual interaction between the parts and media. However, this slower process often results in a finer and more consistent finish, which can be advantageous for parts requiring high levels of precision.
Both methods offer high-quality finishes, but the key difference lies in the uniformity of the results. CBF tends to produce a more uniform, isotropic finish, which is desirable for parts that require a consistent treatment across all surfaces. Vibratory finishing, while also consistent, may not achieve the same level of uniformity as CBF, especially on parts with complex geometries.
Vibratory finishing is more versatile in handling parts with intricate geometries or delicate features. Its gentler motion makes it suitable for parts that cannot withstand the intense forces generated by CBF. CBF, on the other hand, is ideal for bulk processing and is often used for simple parts that do not have complex shapes or thin walls.
Vibratory finishing systems are more easily automated compared to CBF systems. Vibratory finishing can easily be integrated into automated production lines, which reduces labor costs and improves throughput. While CBF can also be automated, the need for manual part handling (especially in loading and unloading) means that it may not be as labor-efficient in high-volume settings.
CBF systems generally involve higher initial investment costs due to the advanced technology and engineering required to create high-speed rotating barrels. However, the system's ability to process parts faster can offset these initial costs in high-volume operations. In contrast, vibratory finishing systems have a lower initial investment but may incur higher operational costs due to the frequent need for media replacement and ongoing maintenance.
In the aerospace industry, both CBF and vibratory finishing are essential. CBF is often used for high-speed deburring and polishing of components such as turbine blades, where precision and efficiency are paramount. Vibratory finishing is used for parts requiring delicate handling, such as precision fasteners or smaller components with intricate designs.
The automotive industry utilizes both CBF and vibratory finishing methods depending on the part and the production requirements. CBF is used for parts such as gears, fasteners, and other components where high-volume deburring and polishing are needed. Vibratory finishing is often applied to trim parts and intricate molds, where a smooth, polished finish is required without damaging the part.
Medical device manufacturers often prefer vibratory finishing for polishing surgical instruments and implants, where a high level of precision and smoothness is needed. CBF is also used for larger parts, such as medical device housings, that require quick deburring and surface finishing.
For the jewelry industry, vibratory finishing is ideal as it can produce smooth, polished surfaces on delicate items without causing damage. CBF is used to clean and deburr small metal components before polishing.
When selecting between CBF and vibratory finishing, several factors need to be considered:
· Part Size and Geometry: Vibratory finishing is better suited for delicate parts with complex geometries, while CBF is ideal for high-volume, bulk processing.
· Surface Finish Requirements: CBF is better for achieving an isotropic and uniform surface finish, whereas vibratory finishing offers a more cost-effective solution for parts requiring a smooth and consistent finish.
· Production Volume: For higher volumes, CBF is often the better choice due to its speed, while vibratory finishing offers more flexibility for smaller batches or high-precision work.
· Budget Considerations: CBF systems generally involve a higher upfront cost, while vibratory finishing offers a more cost-effective solution for small and medium-scale operations.
Both Centrifugal Barrel Finishing (CBF) and Vibratory Finishing have unique advantages and disadvantages, making them suitable for different applications. CBF is ideal for high-speed, high-efficiency operations that require uniform, isotropic finishes, while vibratory finishing excels in handling delicate parts and complex geometries with a smooth, consistent finish. Understanding the needs of your production process—whether it’s speed, precision, or versatility—will help you make an informed decision on the best finishing method. For reliable, high-quality finishing solutions, Huzhou Antron Machinery Co., Ltd. offers tailored machines and expert advice to meet your specific needs.
Q1: Can centrifugal barrel finishing be automated?
Yes, while full automation is more difficult due to manual loading and unloading of parts, CBF can be integrated with automated systems for high-volume applications.
Q2: Is vibratory finishing suitable for all materials?
Yes, vibratory finishing is highly versatile and can handle various materials, including metals, plastics, ceramics, and composites.
Q3: How long does a typical cycle take for centrifugal barrel finishing?
Cycle times for CBF can range from 15 minutes to 2 hours, depending on the part material and desired finish.
Q4: What are the typical maintenance requirements for vibratory finishing machines?
Routine maintenance includes checking the vibratory components, ensuring proper alignment, and replacing worn parts or media.
